Automatic Fly Ash Brick Plant

Product Description

Product details

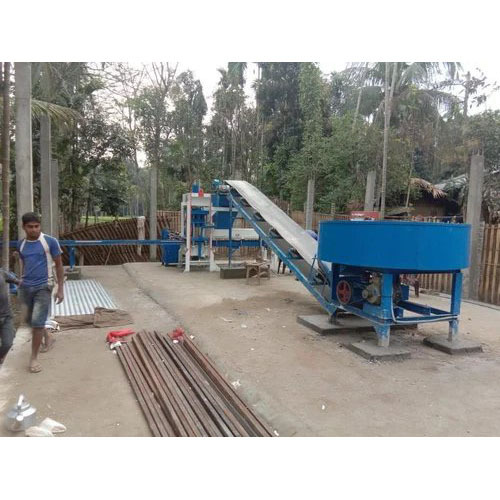

We are the leading Manufacturer of Fly Ash Brick Making Machine, Automatic Fly Ash Brick Making Machine, Vibration Block Making Machine, Paver Block Making Machine, Concrete Block Making Machine, Cement Brick Making Machine, Automatic Cement Brick Making Machine, Automatic Paver Block Making Machine  etc Also We are offering Automatic Fly Ash Brick Plant with stacker to our clients. Automatic Fly ash Bricks making machine With Stacker in this machine you can manufacture Interlocking pavers and solid Blocks

Main Hydraulic Press (One Brick Mould Free With Machine) 4KVT Fly Ash Brick Mould (9*4*3inch)120Ton Pressing CylinderAutomatic Pallet Feeding SystemAutomatic Material Feeding SystemVibrating SystemHeavy Pipe Fabricated Structure

Pan Mixer 500kg- Nos1800mm Diameter12mm Bottom500 Kgs. Capacity With Roller,7.5 Hp Ele.Motor With Gear BoxGate Opening & Closing Manual Operated
Belt Conveyor500mm belt18 Foot Length,2 Hp Ele.Motor With Gear Box
Electrical Controls & Drives System Electrical Control Of The Equipment Is Auto,Semi & Manually Operated.Delta Makes Plc,Achieve Make Control Panel.
Power Pack System Hydraulic Power Pack 450lt CapacityYuken Valve systemHigh Pressure Low Pressure System10 Hp 1440Rpm Motor
