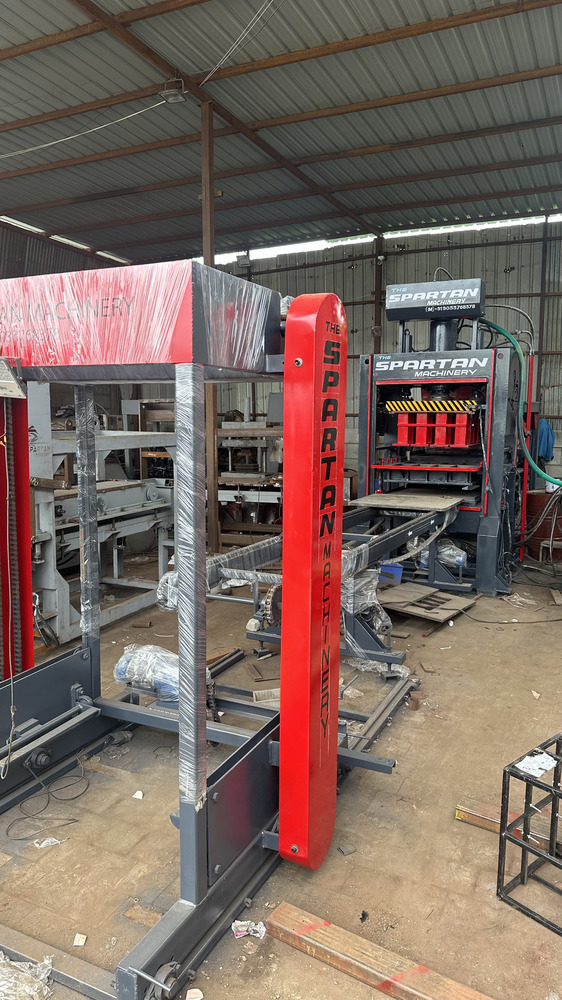

Fully Automatic Concrete Paver Block Machine

उत्पाद विवरण:

Share Your Product:

1280000 आईएनआर/Unit

मूल्य/उद्धरण प्राप्त करें

Request To Call Back जांच भेजें

मूल्य और मात्रा

न्यूनतम आदेश मात्रा 1

व्यापार सूचना

भुगतान की शर्तें
आपूर्ति की क्षमता प्रति महीने
डिलीवरी का समय दिन
मुख्य निर्यात बाजार
मुख्य घरेलू बाज़ार

उत्पाद विवरण

Capacity	1000-1500 Blocks per hour
Block Type	Paver
Method	Hydraulic Pressure
Automation Grade	Fully Automatic
Power	23.5hp
Material	Mild Steel
Warranty	1 Year
Model	TSM 008
Oil Tank Capacity	450lt
Cycle Time	3-4 per min stock
Hydraulic Pressure	100ton
Pan Mixer Capacity	400-500kg
Paver Block Per Stroke	6
I Deal In	New Only
Country of Origin	Made in India

The Spartan Machinery was incorporated in the year 2019, with a declaration to provide the precisely Manufactured products to clients. We are a Solepropritership owned entity which is performing its occupational activities in a proficient manner in the field of Manufacturing. The products spectrum we offer to our customers includes Stone Crusher Machine, Bricks Making Machine,Automatic Bricks Making Machine, Concrete Mixers and many more. We are dedicated to constant improvement and up-gradation, which helps us to evolve in totally and assist to take our company on new heights.
We are the leading Manufacturer of Fly Ash Brick Making Machine, Automatic Fly Ash Brick Making Machine, Vibration Block Making Machine, Paver Block Making Machine, Concrete Block Making Machine, Cement Brick Making Machine, Automatic Cement Brick Making Machine, Automatic Paver Block Making Machine etc Also We are offering Automatic Fly Ash Brick Plant with stacker to our clients. Automatic Fly ash Bricks making machine With Stacker in this machine you can manufacture Interlocking pavers and solid Blocks

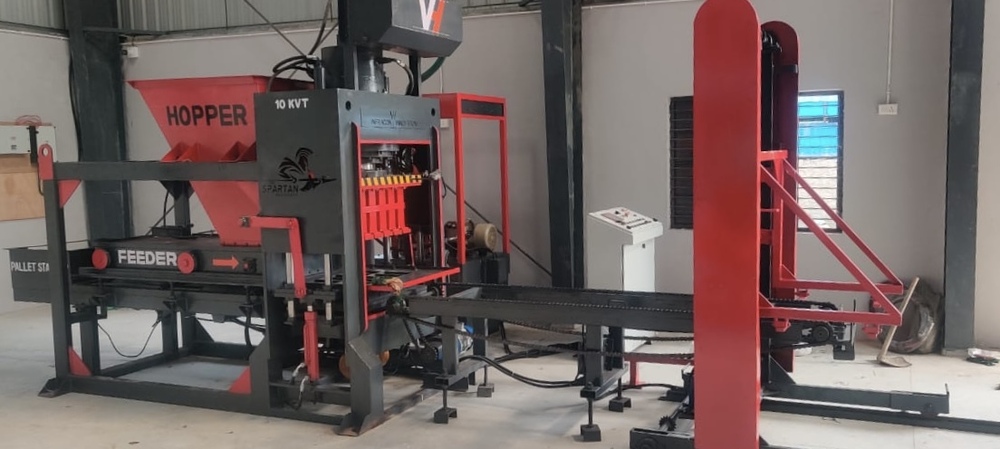

Main Hydraulic Press (One Brick Mould Free With Machine) 8KVT Fly Ash Brick Mould (9*4*3inch)150Ton Pressing CylinderAutomatic Pallet Feeding SystemAutomatic Material Feeding SystemOil Bath Strong Vertical Vibrating System25mm Body Plate Heavy Pipe Fabricated Structure
Pan Mixer 500kg- Nos1800mm Diameter12mm Bottom500 Kgs. Capacity With Roller,7.5 Hp Ele.Motor With Gear BoxGate Opening & Closing Manual Operated
Belt Conveyor500mm belt18 Foot Length,2 Hp Ele.Motor With Gear Box
Electrical Controls & Drives System Electrical Control Of The Equipment Is Auto,Semi & Manually Operated.Delta Makes Plc,Achieve Make Control Panel.
Power Pack System Hydraulic Power Pack 450lt CapacityYuken Valve systemHigh Pressure Low Pressure System10 Hp 1440Rpm Motor
